Manages all block ack agreements for an originator station. More...

#include "block-ack-manager.h"

Inheritance diagram for ns3::BlockAckManager:

Collaboration diagram for ns3::BlockAckManager:

Public Types
typedef void(*	AgreementStateTracedCallback) (Time now, Mac48Address recipient, uint8_t tid, OriginatorBlockAckAgreement::State state)
	TracedCallback signature for state changes. More...

typedef Callback< void, Ptr< const WifiMacQueueItem > >	TxFailed
	typedef for a callback to invoke when an MPDU is negatively ack'ed. More...

typedef Callback< void, Ptr< const WifiMacQueueItem > >	TxOk
	typedef for a callback to invoke when an MPDU is successfully ack'ed. More...

Public Member Functions
	BlockAckManager ()

	~BlockAckManager ()

void	CreateAgreement (const MgtAddBaRequestHeader *reqHdr, Mac48Address recipient)

void	DestroyAgreement (Mac48Address recipient, uint8_t tid)

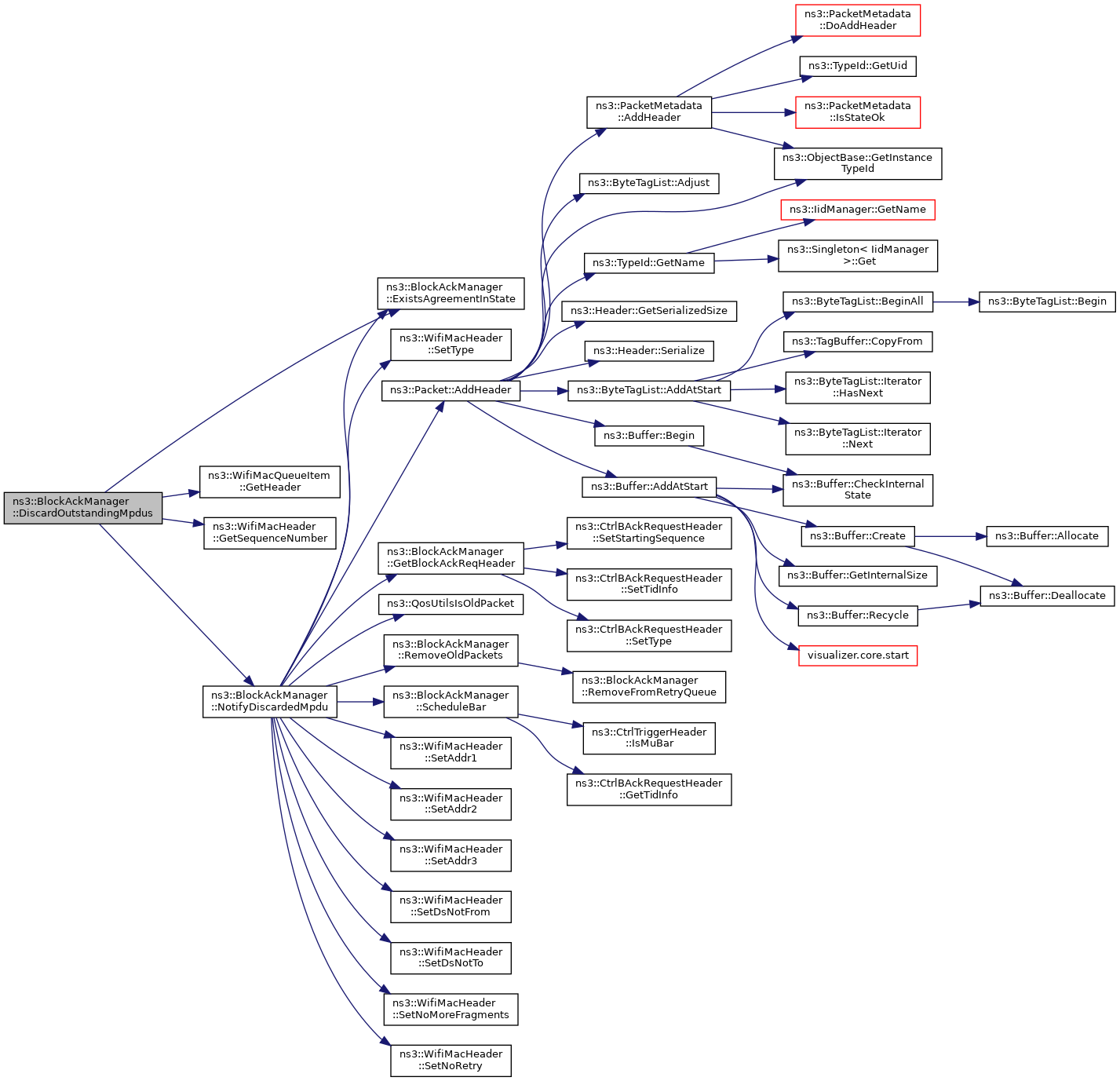

void	DiscardOutstandingMpdus (Mac48Address recipient, uint8_t tid)

bool	ExistsAgreement (Mac48Address recipient, uint8_t tid) const

bool	ExistsAgreementInState (Mac48Address recipient, uint8_t tid, OriginatorBlockAckAgreement::State state) const

Ptr< const WifiMacQueueItem >	GetBar (bool remove=true, uint8_t tid=8, Mac48Address recipient=Mac48Address::GetBroadcast())
	Returns the next BlockAckRequest or MU-BAR Trigger Frame to send, if any. More...

CtrlBAckRequestHeader	GetBlockAckReqHeader (Mac48Address recipient, uint8_t tid) const

BlockAckReqType	GetBlockAckReqType (Mac48Address recipient, uint8_t tid) const
	This function returns the type of Block Acks sent to the recipient. More...

BlockAckType	GetBlockAckType (Mac48Address recipient, uint8_t tid) const
	This function returns the type of Block Acks sent by the recipient. More...

uint32_t	GetNBufferedPackets (Mac48Address recipient, uint8_t tid) const

uint16_t	GetOriginatorStartingSequence (Mac48Address recipient, uint8_t tid) const
	This function returns the starting sequence number of the transmit window. More...

uint16_t	GetRecipientBufferSize (Mac48Address recipient, uint8_t tid) const
	This function returns the buffer size negotiated with the recipient. More...

Ptr< WifiMacQueue >	GetRetransmitQueue (void)

bool	HasPackets (void)
	Returns true if there are packets that need of retransmission or at least a BAR is scheduled. More...

bool	NeedBarRetransmission (uint8_t tid, Mac48Address recipient)
	This function returns true if a block ack agreement is established with the given recipient for the given TID and there is at least an outstanding MPDU for such agreement whose lifetime is not expired. More...

void	NotifyAgreementEstablished (Mac48Address recipient, uint8_t tid, uint16_t startingSeq)

void	NotifyAgreementNoReply (Mac48Address recipient, uint8_t tid)

void	NotifyAgreementRejected (Mac48Address recipient, uint8_t tid)

void	NotifyAgreementReset (Mac48Address recipient, uint8_t tid)

void	NotifyDiscardedMpdu (Ptr< const WifiMacQueueItem > mpdu)

void	NotifyGotAck (Ptr< const WifiMacQueueItem > mpdu)
	Invoked upon receipt of an Ack frame after the transmission of a QoS data frame sent under an established block ack agreement. More...

void	NotifyGotBlockAck (const CtrlBAckResponseHeader &blockAck, Mac48Address recipient, const std::set< uint8_t > &tids, double rxSnr, double dataSnr, const WifiTxVector &dataTxVector, size_t index=0)

void	NotifyMissedAck (Ptr< WifiMacQueueItem > mpdu)
	Invoked upon missed reception of an Ack frame after the transmission of a QoS data frame sent under an established block ack agreement. More...

void	NotifyMissedBlockAck (Mac48Address recipient, uint8_t tid)

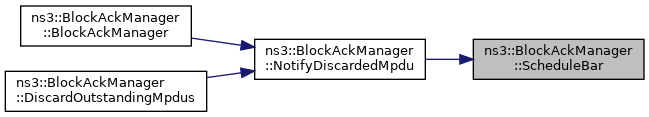

void	ScheduleBar (Ptr< const WifiMacQueueItem > bar, bool skipIfNoDataQueued=false)

void	SetBlockAckInactivityCallback (Callback< void, Mac48Address, uint8_t, bool > callback)
	Set block ack inactivity callback. More...

void	SetBlockAckThreshold (uint8_t nPackets)

void	SetBlockDestinationCallback (Callback< void, Mac48Address, uint8_t > callback)
	Set block destination callback. More...

void	SetQueue (const Ptr< WifiMacQueue > queue)

void	SetTxFailedCallback (TxFailed callback)

void	SetTxOkCallback (TxOk callback)

void	SetUnblockDestinationCallback (Callback< void, Mac48Address, uint8_t > callback)
	Set unblock destination callback. More...

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > manager)
	Set up WifiRemoteStationManager associated with this BlockAckManager. More...

void	StorePacket (Ptr< WifiMacQueueItem > mpdu)

bool	SwitchToBlockAckIfNeeded (Mac48Address recipient, uint8_t tid, uint16_t startingSeq)

void	UpdateAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient, uint16_t startingSeq)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::map< std::pair< Mac48Address, uint8_t >, std::pair< OriginatorBlockAckAgreement, PacketQueue > >	Agreements
	typedef for a map between MAC address and block ack agreement. More...

typedef std::map< std::pair< Mac48Address, uint8_t >, std::pair< OriginatorBlockAckAgreement, PacketQueue > >::const_iterator	AgreementsCI
	typedef for a const iterator for Agreements. More...

typedef std::map< std::pair< Mac48Address, uint8_t >, std::pair< OriginatorBlockAckAgreement, PacketQueue > >::iterator	AgreementsI
	typedef for an iterator for Agreements. More...

typedef std::list< Ptr< WifiMacQueueItem > >	PacketQueue
	typedef for a list of WifiMacQueueItem. More...

typedef std::list< Ptr< WifiMacQueueItem > >::const_iterator	PacketQueueCI
	typedef for a const iterator for PacketQueue. More...

typedef std::list< Ptr< WifiMacQueueItem > >::iterator	PacketQueueI
	typedef for an iterator for PacketQueue. More...

Private Member Functions
	BlockAckManager (const BlockAckManager &)
	type conversion operator More...

void	InactivityTimeout (Mac48Address recipient, uint8_t tid)
	Inactivity timeout function. More...

void	InsertInRetryQueue (Ptr< WifiMacQueueItem > mpdu)

BlockAckManager &	operator= (const BlockAckManager &block)
	assignment operator More...

void	RemoveFromRetryQueue (Mac48Address address, uint8_t tid, uint16_t seq)
	Remove an item from retransmission queue. More...

void	RemoveFromRetryQueue (Mac48Address address, uint8_t tid, uint16_t startSeq, uint16_t endSeq)
	Remove a range of items from retransmission queue. More...

void	RemoveOldPackets (Mac48Address recipient, uint8_t tid, uint16_t startingSeq)
	Remove packets from the retransmit queue and from the queue of outstanding packets that become old after setting the starting sequence number for the agreement with recipient equal to recipient and TID equal to tid to the given startingSeq. More...

Private Attributes
Agreements	m_agreements
	This data structure contains, for each block ack agreement (recipient, TID), a set of packets for which an ack by block ack is requested. More...

TracedCallback< Time, Mac48Address, uint8_t, OriginatorBlockAckAgreement::State >	m_agreementState
	The trace source fired when a state transition occurred. More...

std::list< Bar >	m_bars
	list of BARs More...

Callback< void, Mac48Address, uint8_t, bool >	m_blockAckInactivityTimeout
	BlockAck inactivity timeout callback. More...

uint8_t	m_blockAckThreshold
	block ack threshold More...

Callback< void, Mac48Address, uint8_t >	m_blockPackets
	block packets callback More...

Ptr< WifiMacQueue >	m_queue
	queue More...

Ptr< WifiMacQueue >	m_retryPackets
	This list contains all iterators to stored packets that need to be retransmitted. More...

Ptr< WifiRemoteStationManager >	m_stationManager
	the station manager More...

TxFailed	m_txFailedCallback
	transmit failed callback More...

TxOk	m_txOkCallback
	transmit OK callback More...

Callback< void, Mac48Address, uint8_t >	m_unblockPackets
	unblock packets callback More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Manages all block ack agreements for an originator station.

Config Paths

ns3::BlockAckManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/Txop/$ns3::QosTxop/BlockAckManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_Txop/BlockAckManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_Txop/BlockAckManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_Txop/BlockAckManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_Txop/BlockAckManager"

No Attributes are defined for this type.

TraceSources

AgreementState: The state of the ADDBA handshake
Callback signature: ns3::BlockAckManager::AgreementStateTracedCallback

Size of this type is 200 bytes (on a 64-bit architecture).

Definition at line 70 of file block-ack-manager.h.

Member Typedef Documentation

◆ Agreements

typedef std::map<std::pair<Mac48Address, uint8_t>, std::pair<OriginatorBlockAckAgreement, PacketQueue> > ns3::BlockAckManager::Agreements

private

typedef for a map between MAC address and block ack agreement.

Definition at line 470 of file block-ack-manager.h.

◆ AgreementsCI

typedef std::map<std::pair<Mac48Address, uint8_t>, std::pair<OriginatorBlockAckAgreement, PacketQueue> >::const_iterator ns3::BlockAckManager::AgreementsCI

private

typedef for a const iterator for Agreements.

Definition at line 480 of file block-ack-manager.h.

◆ AgreementsI

typedef std::map<std::pair<Mac48Address, uint8_t>, std::pair<OriginatorBlockAckAgreement, PacketQueue> >::iterator ns3::BlockAckManager::AgreementsI

private

typedef for an iterator for Agreements.

Definition at line 475 of file block-ack-manager.h.

◆ AgreementStateTracedCallback

typedef void(* ns3::BlockAckManager::AgreementStateTracedCallback) (Time now, Mac48Address recipient, uint8_t tid, OriginatorBlockAckAgreement::State state)

TracedCallback signature for state changes.

Parameters

[in]	now	Time when the state changed.
[in]	recipient	MAC address of the recipient.
[in]	tid	the TID.
[in]	state	The state.

Definition at line 399 of file block-ack-manager.h.

◆ PacketQueue

typedef std::list<Ptr<WifiMacQueueItem> > ns3::BlockAckManager::PacketQueue

private

typedef for a list of WifiMacQueueItem.

Definition at line 457 of file block-ack-manager.h.

◆ PacketQueueCI

typedef std::list<Ptr<WifiMacQueueItem> >::const_iterator ns3::BlockAckManager::PacketQueueCI

private

typedef for a const iterator for PacketQueue.

Definition at line 465 of file block-ack-manager.h.

◆ PacketQueueI

typedef std::list<Ptr<WifiMacQueueItem> >::iterator ns3::BlockAckManager::PacketQueueI

private

typedef for an iterator for PacketQueue.

Definition at line 461 of file block-ack-manager.h.

◆ TxFailed

typedef Callback<void, Ptr<const WifiMacQueueItem> > ns3::BlockAckManager::TxFailed

typedef for a callback to invoke when an MPDU is negatively ack'ed.

Definition at line 379 of file block-ack-manager.h.

◆ TxOk

typedef Callback<void, Ptr<const WifiMacQueueItem> > ns3::BlockAckManager::TxOk

typedef for a callback to invoke when an MPDU is successfully ack'ed.

Definition at line 375 of file block-ack-manager.h.

Constructor & Destructor Documentation

◆ BlockAckManager() [1/2]

ns3::BlockAckManager::BlockAckManager ( const BlockAckManager & )

private

type conversion operator

◆ BlockAckManager() [2/2]

ns3::BlockAckManager::BlockAckManager ( )

Definition at line 65 of file block-ack-manager.cc.

References m_retryPackets, ns3::MakeCallback(), NotifyDiscardedMpdu(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~BlockAckManager()

ns3::BlockAckManager::~BlockAckManager ( )

Definition at line 72 of file block-ack-manager.cc.

References m_agreements, m_queue, m_retryPackets, and NS_LOG_FUNCTION.

Member Function Documentation

◆ CreateAgreement()

void ns3::BlockAckManager::CreateAgreement	(	const MgtAddBaRequestHeader *	reqHdr,
		Mac48Address	recipient
	)

Parameters

reqHdr	Relative Add block ack request (action frame).
recipient	Address of peer station involved in block ack mechanism.

Creates a new block ack agreement in pending state. When a ADDBA response with a successful status code is received, the relative agreement becomes established.

Definition at line 115 of file block-ack-manager.cc.

References ExistsAgreement(), ExistsAgreementInState(), ns3::MgtAddBaRequestHeader::GetBufferSize(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::MgtAddBaRequestHeader::GetStartingSequence(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaRequestHeader::GetTimeout(), ns3::MgtAddBaRequestHeader::IsAmsduSupported(), ns3::MgtAddBaRequestHeader::IsImmediateBlockAck(), m_agreements, m_agreementState, m_blockPackets, m_stationManager, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, ns3::OriginatorBlockAckAgreement::RESET, ns3::BlockAckAgreement::SetAmsduSupport(), ns3::BlockAckAgreement::SetBufferSize(), ns3::BlockAckAgreement::SetDelayedBlockAck(), ns3::BlockAckAgreement::SetHtSupported(), ns3::BlockAckAgreement::SetImmediateBlockAck(), ns3::BlockAckAgreement::SetStartingSequence(), ns3::OriginatorBlockAckAgreement::SetState(), and ns3::BlockAckAgreement::SetTimeout().

Here is the call graph for this function:

◆ DestroyAgreement()

void ns3::BlockAckManager::DestroyAgreement	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	traffic ID of transmitted packet.

Invoked when a recipient reject a block ack agreement or when a DELBA frame is Received/Transmitted.

Definition at line 151 of file block-ack-manager.cc.

References m_agreements, m_bars, m_retryPackets, and NS_LOG_FUNCTION.

◆ DiscardOutstandingMpdus()

void ns3::BlockAckManager::DiscardOutstandingMpdus	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	outstanding frames' receiver.
tid	Traffic ID.

Discard all the outstanding MPDUs destined to the given receiver and belonging to the given TID. Typically, this function is called by ns3::QosTxop object when it gives up retransmitting either a BlockAckRequest or the Data frames.

Definition at line 582 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacHeader::GetSequenceNumber(), m_agreements, NotifyDiscardedMpdu(), NS_LOG_FUNCTION, and ns3::SEQNO_SPACE_HALF_SIZE.

Here is the call graph for this function:

◆ ExistsAgreement()

bool ns3::BlockAckManager::ExistsAgreement	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.

Returns: true if a block ack agreement exists, false otherwise

Checks if a block ack agreement exists with station addressed by recipient for TID tid.

Definition at line 81 of file block-ack-manager.cc.

References m_agreements, and NS_LOG_FUNCTION.

Referenced by CreateAgreement(), and SwitchToBlockAckIfNeeded().

Here is the caller graph for this function:

◆ ExistsAgreementInState()

bool ns3::BlockAckManager::ExistsAgreementInState	(	Mac48Address	recipient,
		uint8_t	tid,
		OriginatorBlockAckAgreement::State	state
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.
state	The state for block ack agreement

Returns: true if a block ack agreement exists, false otherwise

Checks if a block ack agreement with a state equals to state exists with station addressed by recipient for TID tid.

Definition at line 88 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, m_agreements, ns3::OriginatorBlockAckAgreement::NO_REPLY, NS_FATAL_ERROR, ns3::OriginatorBlockAckAgreement::PENDING, ns3::OriginatorBlockAckAgreement::REJECTED, and ns3::OriginatorBlockAckAgreement::RESET.

Referenced by CreateAgreement(), DiscardOutstandingMpdus(), NeedBarRetransmission(), NotifyDiscardedMpdu(), NotifyGotAck(), NotifyGotBlockAck(), NotifyMissedAck(), NotifyMissedBlockAck(), and SwitchToBlockAckIfNeeded().

Here is the caller graph for this function:

◆ GetBar()

Ptr< const WifiMacQueueItem > ns3::BlockAckManager::GetBar	(	bool	remove = `true`,
		uint8_t	tid = `8`,
		Mac48Address	recipient = `Mac48Address::GetBroadcast ()`
	)

Returns the next BlockAckRequest or MU-BAR Trigger Frame to send, if any.

If the given recipient is not the broadcast address and the given TID is less than 8, then only return a BlockAckRequest, if any, addressed to that recipient and for the given TID.

Parameters

remove	true if the BAR has to be removed from the queue
tid	the TID
recipient	the recipient of the BAR

Returns: the next BAR to be sent, if any

Definition at line 276 of file block-ack-manager.cc.

References ns3::Packet::AddHeader(), first::address, ns3::WifiMacQueue::EMPTY, ns3::Mac48Address::GetBroadcast(), ns3::CtrlBAckRequestHeader::GetStartingSequence(), m_agreements, m_bars, m_queue, m_retryPackets, ns3::Simulator::Now(), and ns3::CtrlBAckRequestHeader::SetStartingSequence().

Referenced by HasPackets().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBlockAckReqHeader()

CtrlBAckRequestHeader ns3::BlockAckManager::GetBlockAckReqHeader	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	the recipient
tid	the TID

Returns: the BlockAckRequest header for the established BA agreement

Get the BlockAckRequest header for the established BA agreement (recipient,tid).

Definition at line 656 of file block-ack-manager.cc.

References m_agreements, NS_ASSERT, NS_LOG_FUNCTION, ns3::CtrlBAckRequestHeader::SetStartingSequence(), ns3::CtrlBAckRequestHeader::SetTidInfo(), and ns3::CtrlBAckRequestHeader::SetType().

Referenced by NotifyDiscardedMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBlockAckReqType()

BlockAckReqType ns3::BlockAckManager::GetBlockAckReqType	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

This function returns the type of Block Acks sent to the recipient.

Parameters

recipient	MAC address of recipient
tid	Traffic ID

Returns: the type of Block Acks sent to the recipient

Definition at line 990 of file block-ack-manager.cc.

References m_agreements, and NS_ABORT_MSG_IF.

◆ GetBlockAckType()

BlockAckType ns3::BlockAckManager::GetBlockAckType	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

This function returns the type of Block Acks sent by the recipient.

Parameters

recipient	MAC address
tid	Traffic ID

Returns: the type of Block Acks sent by the recipient

Definition at line 998 of file block-ack-manager.cc.

References m_agreements, and NS_ABORT_MSG_IF.

◆ GetNBufferedPackets()

uint32_t ns3::BlockAckManager::GetNBufferedPackets	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.

Returns: the number of packets buffered for a specified agreement

Returns the number of packets buffered for a specified agreement. This methods doesn't return the number of buffered MPDUs but the number of buffered MSDUs.

Definition at line 358 of file block-ack-manager.cc.

References m_agreements, and NS_LOG_FUNCTION.

Referenced by SwitchToBlockAckIfNeeded().

Here is the caller graph for this function:

◆ GetOriginatorStartingSequence()

uint16_t ns3::BlockAckManager::GetOriginatorStartingSequence	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

This function returns the starting sequence number of the transmit window.

Parameters

tid	Traffic ID
recipient	MAC address of the recipient

Returns: the starting sequence number of the transmit window (WinStartO)

Definition at line 1006 of file block-ack-manager.cc.

References m_agreements.

◆ GetRecipientBufferSize()

uint16_t ns3::BlockAckManager::GetRecipientBufferSize	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

This function returns the buffer size negotiated with the recipient.

Parameters

tid	Traffic ID
recipient	MAC address of the recipient

Returns: the buffer size negotiated with the recipient

Definition at line 978 of file block-ack-manager.cc.

References m_agreements.

◆ GetRetransmitQueue()

Ptr< WifiMacQueue > ns3::BlockAckManager::GetRetransmitQueue ( void )

Returns: the retransmit queue.

Return the retransmit queue.

Definition at line 225 of file block-ack-manager.cc.

References m_retryPackets.

◆ GetTypeId()

TypeId ns3::BlockAckManager::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 51 of file block-ack-manager.cc.

References m_agreementState, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HasPackets()

bool ns3::BlockAckManager::HasPackets ( void )

Returns true if there are packets that need of retransmission or at least a BAR is scheduled.

Returns false otherwise.

Returns: true if there are packets that need of retransmission or at least a BAR is scheduled, false otherwise

Definition at line 351 of file block-ack-manager.cc.

References GetBar(), m_retryPackets, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ InactivityTimeout()

void ns3::BlockAckManager::InactivityTimeout	(	Mac48Address	recipient,
		uint8_t	tid
	)

private

Inactivity timeout function.

Parameters

recipient	the recipient MAC address
tid	Traffic ID

Definition at line 719 of file block-ack-manager.cc.

References m_blockAckInactivityTimeout, and NS_LOG_FUNCTION.

Referenced by NotifyGotBlockAck(), and UpdateAgreement().

Here is the caller graph for this function:

◆ InsertInRetryQueue()

void ns3::BlockAckManager::InsertInRetryQueue ( Ptr< WifiMacQueueItem > mpdu )

private

Parameters

mpdu	the packet to insert in the retransmission queue

Insert mpdu in retransmission queue. This method ensures packets are retransmitted in the correct order.

Definition at line 934 of file block-ack-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetFragmentNumber(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceControl(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiMacHeader::IsQosData(), m_agreements, m_retryPackets, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, ns3::SEQNO_SPACE_HALF_SIZE, and ns3::WifiMacHeader::SetRetry().

Referenced by NotifyGotBlockAck(), NotifyMissedAck(), and NotifyMissedBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NeedBarRetransmission()

bool ns3::BlockAckManager::NeedBarRetransmission	(	uint8_t	tid,
		Mac48Address	recipient
	)

This function returns true if a block ack agreement is established with the given recipient for the given TID and there is at least an outstanding MPDU for such agreement whose lifetime is not expired.

Parameters

tid	Traffic ID
recipient	MAC address of the recipient

Returns: true if BAR retransmission needed

Definition at line 804 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), m_agreements, m_queue, ns3::Simulator::Now(), and NS_ASSERT.

Here is the call graph for this function:

◆ NotifyAgreementEstablished()

void ns3::BlockAckManager::NotifyAgreementEstablished	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	startingSeq
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.
startingSeq	starting sequence field

Puts corresponding agreement in established state and updates number of packets and starting sequence field. Invoked typically after a block ack refresh.

Definition at line 726 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, m_agreements, m_agreementState, ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SwitchToBlockAckIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAgreementNoReply()

void ns3::BlockAckManager::NotifyAgreementNoReply	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.

Marks an agreement after not receiving response to ADDBA request. During this state any packets in queue will be transmitted using normal MPDU. This also unblock recipient address.

Definition at line 753 of file block-ack-manager.cc.

References m_agreements, m_agreementState, m_unblockPackets, ns3::OriginatorBlockAckAgreement::NO_REPLY, ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyAgreementRejected()

void ns3::BlockAckManager::NotifyAgreementRejected	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.

Marks an agreement as rejected. This happens if recipient station reject block ack setup by an ADDBA Response frame with a failure status code. For now we assume that every QoS station accepts a block ack setup.

Definition at line 740 of file block-ack-manager.cc.

References m_agreements, m_agreementState, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::OriginatorBlockAckAgreement::REJECTED.

Here is the call graph for this function:

◆ NotifyAgreementReset()

void ns3::BlockAckManager::NotifyAgreementReset	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.

Set BA agreement to a transitory state to reset it after not receiving response to ADDBA request.

Definition at line 767 of file block-ack-manager.cc.

References m_agreements, m_agreementState, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::OriginatorBlockAckAgreement::RESET.

Here is the call graph for this function:

◆ NotifyDiscardedMpdu()

void ns3::BlockAckManager::NotifyDiscardedMpdu ( Ptr< const WifiMacQueueItem > mpdu )

Parameters

mpdu	the discarded frame

Notify the block ack manager that an MPDU has been discarded, e.g., because the MSDU lifetime expired. If there is an established block ack agreement, make the transmit window advance beyond the discarded frame. This also involves (i) the removal of frames that consequently become old from the retransmit queue and from the queue of the block ack agreement, and (ii) the scheduling of a BlockAckRequest.

Definition at line 605 of file block-ack-manager.cc.

Referenced by BlockAckManager(), and DiscardOutstandingMpdus().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyGotAck()

void ns3::BlockAckManager::NotifyGotAck ( Ptr< const WifiMacQueueItem > mpdu )

Invoked upon receipt of an Ack frame after the transmission of a QoS data frame sent under an established block ack agreement.

Remove the acknowledged frame from the outstanding packets and update the starting sequence number of the transmit window, if needed.

Parameters

mpdu	The acknowledged MPDU.

Definition at line 396 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), m_agreements, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyGotBlockAck()

void ns3::BlockAckManager::NotifyGotBlockAck	(	const CtrlBAckResponseHeader &	blockAck,
		Mac48Address	recipient,
		const std::set< uint8_t > &	tids,
		double	rxSnr,
		double	dataSnr,
		const WifiTxVector &	dataTxVector,
		size_t	index = `0`
	)

Parameters

blockAck	The received BlockAck frame.
recipient	Sender of BlockAck frame.
tids	the set of TIDs the acknowledged MPDUs belong to
rxSnr	received SNR of the BlockAck frame itself
dataSnr	data SNR reported by remote station
dataTxVector	the TXVECTOR used to send the Data
index	the index of the Per AID TID Info subfield, in case of Multi-STA Block Ack, or 0, otherwise

Invoked upon receipt of a BlockAck frame. Typically, this function, is called by ns3::QosTxop object. Performs a check on which MPDUs, previously sent with Ack Policy set to Block Ack, were correctly received by the recipient. An acknowledged MPDU is removed from the buffer, retransmitted otherwise. Note that tids is only used if blockAck is a Multi-STA Block Ack using All-ack context.

Definition at line 458 of file block-ack-manager.cc.

Here is the call graph for this function:

◆ NotifyMissedAck()

void ns3::BlockAckManager::NotifyMissedAck ( Ptr< WifiMacQueueItem > mpdu )

Invoked upon missed reception of an Ack frame after the transmission of a QoS data frame sent under an established block ack agreement.

Remove the acknowledged frame from the outstanding packets and insert it in the retransmission queue.

Parameters

mpdu	The unacknowledged MPDU.

Definition at line 426 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), InsertInRetryQueue(), ns3::WifiMacHeader::IsQosData(), m_agreements, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyMissedBlockAck()

void ns3::BlockAckManager::NotifyMissedBlockAck	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Sender of the expected BlockAck frame.
tid	Traffic ID.

Invoked upon missed reception of a block ack frame. Typically, this function, is called by ns3::QosTxop object. Performs a check on which MPDUs, previously sent with ack policy set to Block Ack, should be placed in the retransmission queue.

Definition at line 564 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), InsertInRetryQueue(), m_agreements, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ operator=()

BlockAckManager& ns3::BlockAckManager::operator= ( const BlockAckManager & block )

private

assignment operator

Parameters

block BlockAckManager to assign

Returns: the assigned BlockAckManager

◆ RemoveFromRetryQueue() [1/2]

void ns3::BlockAckManager::RemoveFromRetryQueue	(	Mac48Address	address,
		uint8_t	tid,
		uint16_t	seq
	)

private

Remove an item from retransmission queue.

This method should be called when packets are acknowledged.

Parameters

address	recipient MAC address of the packet to be removed
tid	Traffic ID of the packet to be removed
seq	sequence number of the packet to be removed

Definition at line 827 of file block-ack-manager.cc.

References first::address.

Referenced by RemoveOldPackets().

Here is the caller graph for this function:

◆ RemoveFromRetryQueue() [2/2]

void ns3::BlockAckManager::RemoveFromRetryQueue	(	Mac48Address	address,
		uint8_t	tid,
		uint16_t	startSeq,
		uint16_t	endSeq
	)

private

Remove a range of items from retransmission queue.

This method should be called when packets are acknowledged.

Parameters

address	recipient MAC address of the packet to be removed
tid	Traffic ID of the packet to be removed
startSeq	sequence number of the first packet to be removed
endSeq	sequence number of the last packet to be removed

Definition at line 833 of file block-ack-manager.cc.

References first::address, m_agreements, m_retryPackets, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ RemoveOldPackets()

void ns3::BlockAckManager::RemoveOldPackets	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	startingSeq
	)

private

Remove packets from the retransmit queue and from the queue of outstanding packets that become old after setting the starting sequence number for the agreement with recipient equal to recipient and TID equal to tid to the given startingSeq.

Parameters

recipient	the recipient MAC address
tid	Traffic ID
startingSeq	the new starting sequence number

Definition at line 862 of file block-ack-manager.cc.

References m_agreements, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, RemoveFromRetryQueue(), ns3::SEQNO_SPACE_HALF_SIZE, and ns3::SEQNO_SPACE_SIZE.

Referenced by NotifyDiscardedMpdu(), and NotifyGotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleBar()

void ns3::BlockAckManager::ScheduleBar	(	Ptr< const WifiMacQueueItem >	bar,
		bool	skipIfNoDataQueued = `false`
	)

Parameters

bar	the BlockAckRequest to enqueue
skipIfNoDataQueued	do not send if there is no data queued

Enqueue the given BlockAckRequest into the queue storing the next BAR frames to transmit. If a BAR for the same recipient and TID is already present in the queue, it is replaced by the new one. If the given BAR is retransmitted, it is placed at the head of the queue, otherwise at the tail.

Definition at line 670 of file block-ack-manager.cc.

References ns3::CtrlBAckRequestHeader::GetTidInfo(), ns3::CtrlTriggerHeader::IsMuBar(), m_bars, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by NotifyDiscardedMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBlockAckInactivityCallback()

void ns3::BlockAckManager::SetBlockAckInactivityCallback ( Callback< void, Mac48Address, uint8_t, bool > callback )

Set block ack inactivity callback.

Parameters

callback the block ack inactivity callback function

Definition at line 901 of file block-ack-manager.cc.

References m_blockAckInactivityTimeout, and NS_LOG_FUNCTION.

◆ SetBlockAckThreshold()

void ns3::BlockAckManager::SetBlockAckThreshold ( uint8_t nPackets )

Parameters

nPackets Minimum number of packets for use of block ack.

Upon receipt of a BlockAck frame, if total number of packets (packets in WifiMacQueue and buffered packets) is greater of nPackets, they are transmitted using block ack mechanism.

Definition at line 382 of file block-ack-manager.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

◆ SetBlockDestinationCallback()

void ns3::BlockAckManager::SetBlockDestinationCallback ( Callback< void, Mac48Address, uint8_t > callback )

Set block destination callback.

Parameters

callback the block destination callback

Definition at line 908 of file block-ack-manager.cc.

References m_blockPackets, and NS_LOG_FUNCTION.

◆ SetQueue()

void ns3::BlockAckManager::SetQueue ( const Ptr< WifiMacQueue > queue )

Parameters

queue The WifiMacQueue object.

Definition at line 780 of file block-ack-manager.cc.

References m_queue, and NS_LOG_FUNCTION.

◆ SetTxFailedCallback()

void ns3::BlockAckManager::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 928 of file block-ack-manager.cc.

References m_txFailedCallback.

◆ SetTxOkCallback()

void ns3::BlockAckManager::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 922 of file block-ack-manager.cc.

References m_txOkCallback.

◆ SetUnblockDestinationCallback()

void ns3::BlockAckManager::SetUnblockDestinationCallback ( Callback< void, Mac48Address, uint8_t > callback )

Set unblock destination callback.

Parameters

callback the unblock destination callback

Definition at line 915 of file block-ack-manager.cc.

References m_unblockPackets, and NS_LOG_FUNCTION.

◆ SetWifiRemoteStationManager()

void ns3::BlockAckManager::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > manager )

Set up WifiRemoteStationManager associated with this BlockAckManager.

Parameters

manager WifiRemoteStationManager associated with this BlockAckManager

Definition at line 389 of file block-ack-manager.cc.

References m_stationManager, and NS_LOG_FUNCTION.

◆ StorePacket()

void ns3::BlockAckManager::StorePacket ( Ptr< WifiMacQueueItem > mpdu )

Parameters

mpdu	MPDU to store.

Stores mpdu for a possible future retransmission. Retransmission occurs if the packet, in a BlockAck frame, is indicated by recipient as not received.

Definition at line 231 of file block-ack-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetFragmentNumber(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceControl(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiMacHeader::IsQosData(), m_agreements, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SEQNO_SPACE_HALF_SIZE.

Here is the call graph for this function:

◆ SwitchToBlockAckIfNeeded()

bool ns3::BlockAckManager::SwitchToBlockAckIfNeeded	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	startingSeq
	)

Parameters

recipient	the destination address
tid	the Traffic ID
startingSeq	the starting sequence number

Returns: true if there are packets in the queue that could be sent under block ack, false otherwise

Checks if there are in the queue other packets that could be send under block ack. If yes adds these packets in current block ack exchange. However, number of packets exchanged in the current block ack, will not exceed the value of BufferSize in the corresponding OriginatorBlockAckAgreement object.

Definition at line 787 of file block-ack-manager.cc.

References ExistsAgreement(), ExistsAgreementInState(), GetNBufferedPackets(), m_blockAckThreshold, m_queue, NotifyAgreementEstablished(), NS_ASSERT, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, and ns3::OriginatorBlockAckAgreement::REJECTED.

Here is the call graph for this function:

◆ UpdateAgreement()

void ns3::BlockAckManager::UpdateAgreement	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	recipient,
		uint16_t	startingSeq
	)

Parameters

respHdr	Relative Add block ack response (action frame).
recipient	Address of peer station involved in block ack mechanism.
startingSeq	the updated starting sequence number

Invoked upon receipt of a ADDBA response frame from recipient.

Definition at line 185 of file block-ack-manager.cc.

Here is the call graph for this function:

Member Data Documentation

◆ m_agreements

Agreements ns3::BlockAckManager::m_agreements

private

This data structure contains, for each block ack agreement (recipient, TID), a set of packets for which an ack by block ack is requested.

Every packet or fragment indicated as correctly received in BlockAck frame is erased from this data structure. Pushed back in retransmission queue otherwise.

Definition at line 517 of file block-ack-manager.h.

Referenced by ~BlockAckManager(), CreateAgreement(), DestroyAgreement(), DiscardOutstandingMpdus(), ExistsAgreement(), ExistsAgreementInState(), GetBar(), GetBlockAckReqHeader(), GetBlockAckReqType(), GetBlockAckType(), GetNBufferedPackets(), GetOriginatorStartingSequence(), GetRecipientBufferSize(), InsertInRetryQueue(), NeedBarRetransmission(), NotifyAgreementEstablished(), NotifyAgreementNoReply(), NotifyAgreementRejected(), NotifyAgreementReset(), NotifyDiscardedMpdu(), NotifyGotAck(), NotifyGotBlockAck(), NotifyMissedAck(), NotifyMissedBlockAck(), RemoveFromRetryQueue(), RemoveOldPackets(), StorePacket(), and UpdateAgreement().

◆ m_agreementState

TracedCallback<Time, Mac48Address, uint8_t, OriginatorBlockAckAgreement::State> ns3::BlockAckManager::m_agreementState

private

The trace source fired when a state transition occurred.

Definition at line 539 of file block-ack-manager.h.

Referenced by CreateAgreement(), GetTypeId(), NotifyAgreementEstablished(), NotifyAgreementNoReply(), NotifyAgreementRejected(), NotifyAgreementReset(), and UpdateAgreement().

◆ m_bars

std::list<Bar> ns3::BlockAckManager::m_bars

private

list of BARs

Definition at line 525 of file block-ack-manager.h.

Referenced by DestroyAgreement(), GetBar(), and ScheduleBar().

◆ m_blockAckInactivityTimeout

Callback<void, Mac48Address, uint8_t, bool> ns3::BlockAckManager::m_blockAckInactivityTimeout

private

BlockAck inactivity timeout callback.

Definition at line 529 of file block-ack-manager.h.

Referenced by InactivityTimeout(), and SetBlockAckInactivityCallback().

◆ m_blockAckThreshold

uint8_t ns3::BlockAckManager::m_blockAckThreshold

private

block ack threshold

Definition at line 527 of file block-ack-manager.h.

Referenced by SetBlockAckThreshold(), and SwitchToBlockAckIfNeeded().

◆ m_blockPackets

Callback<void, Mac48Address, uint8_t> ns3::BlockAckManager::m_blockPackets

private

block packets callback

Definition at line 530 of file block-ack-manager.h.

Referenced by CreateAgreement(), and SetBlockDestinationCallback().

◆ m_queue

Ptr<WifiMacQueue> ns3::BlockAckManager::m_queue

private

queue

Definition at line 528 of file block-ack-manager.h.

Referenced by ~BlockAckManager(), GetBar(), NeedBarRetransmission(), SetQueue(), and SwitchToBlockAckIfNeeded().

◆ m_retryPackets

Ptr<WifiMacQueue> ns3::BlockAckManager::m_retryPackets

private

This list contains all iterators to stored packets that need to be retransmitted.

A packet needs retransmission if it's indicated as not correctly received in a BlockAck frame.

Definition at line 524 of file block-ack-manager.h.

Referenced by BlockAckManager(), ~BlockAckManager(), DestroyAgreement(), GetBar(), GetRetransmitQueue(), HasPackets(), InsertInRetryQueue(), and RemoveFromRetryQueue().

◆ m_stationManager

Ptr<WifiRemoteStationManager> ns3::BlockAckManager::m_stationManager

private

the station manager

Definition at line 534 of file block-ack-manager.h.

Referenced by CreateAgreement(), NotifyGotBlockAck(), and SetWifiRemoteStationManager().

◆ m_txFailedCallback

TxFailed ns3::BlockAckManager::m_txFailedCallback

private

transmit failed callback

Definition at line 533 of file block-ack-manager.h.

Referenced by NotifyGotBlockAck(), and SetTxFailedCallback().

◆ m_txOkCallback

TxOk ns3::BlockAckManager::m_txOkCallback

private

transmit OK callback

Definition at line 532 of file block-ack-manager.h.

Referenced by NotifyGotBlockAck(), and SetTxOkCallback().

◆ m_unblockPackets

Callback<void, Mac48Address, uint8_t> ns3::BlockAckManager::m_unblockPackets

private

unblock packets callback

Definition at line 531 of file block-ack-manager.h.

Referenced by NotifyAgreementNoReply(), SetUnblockDestinationCallback(), and UpdateAgreement().

The documentation for this class was generated from the following files:

src/wifi/model/block-ack-manager.h
src/wifi/model/block-ack-manager.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

◆ Agreements

◆ AgreementsCI

◆ AgreementsI

◆ AgreementStateTracedCallback

◆ PacketQueue

◆ PacketQueueCI

◆ PacketQueueI

◆ TxFailed

◆ TxOk

Constructor & Destructor Documentation

◆ BlockAckManager() [1/2]

◆ BlockAckManager() [2/2]

◆ ~BlockAckManager()

Member Function Documentation

◆ CreateAgreement()

◆ DestroyAgreement()

◆ DiscardOutstandingMpdus()

◆ ExistsAgreement()

◆ ExistsAgreementInState()

◆ GetBar()

◆ GetBlockAckReqHeader()

◆ GetBlockAckReqType()

◆ GetBlockAckType()

◆ GetNBufferedPackets()

◆ GetOriginatorStartingSequence()

◆ GetRecipientBufferSize()

◆ GetRetransmitQueue()

◆ GetTypeId()

◆ HasPackets()

◆ InactivityTimeout()

◆ InsertInRetryQueue()

◆ NeedBarRetransmission()

◆ NotifyAgreementEstablished()

◆ NotifyAgreementNoReply()

◆ NotifyAgreementRejected()

◆ NotifyAgreementReset()

◆ NotifyDiscardedMpdu()

◆ NotifyGotAck()

◆ NotifyGotBlockAck()

◆ NotifyMissedAck()

◆ NotifyMissedBlockAck()

◆ operator=()

◆ RemoveFromRetryQueue() [1/2]

◆ RemoveFromRetryQueue() [2/2]

◆ RemoveOldPackets()

◆ ScheduleBar()

◆ SetBlockAckInactivityCallback()

◆ SetBlockAckThreshold()

◆ SetBlockDestinationCallback()

◆ SetQueue()

◆ SetTxFailedCallback()

◆ SetTxOkCallback()

◆ SetUnblockDestinationCallback()

◆ SetWifiRemoteStationManager()

◆ StorePacket()

◆ SwitchToBlockAckIfNeeded()

◆ UpdateAgreement()

Member Data Documentation

◆ m_agreements

◆ m_agreementState

◆ m_bars

◆ m_blockAckInactivityTimeout

◆ m_blockAckThreshold

◆ m_blockPackets

◆ m_queue

◆ m_retryPackets

◆ m_stationManager

◆ m_txFailedCallback

◆ m_txOkCallback
