ns3::Config Namespace Reference

Namespace for the various functions implementing the Config system. More...

Classes
class	ArrayMatcher
	Helper to test if an array entry matches a config path specification. More...
class	ConfigImpl
	Config system implementation class. More...
class	MatchContainer
	hold a set of objects which match a specific search string. More...
class	Resolver
	Abstract class to parse Config paths into object references. More...

Functions
void	Connect (std::string path, const CallbackBase &cb)
bool	ConnectFailSafe (std::string path, const CallbackBase &cb)
	This function will attempt to find all trace sources which match the input path and will then connect the input callback to them in such a way that the callback will receive an extra context string upon trace event notification. More...
void	ConnectWithoutContext (std::string path, const CallbackBase &cb)
bool	ConnectWithoutContextFailSafe (std::string path, const CallbackBase &cb)
	This function will attempt to find all trace sources which match the input path and will then connect the input callback to them. More...
void	Disconnect (std::string path, const CallbackBase &cb)
void	DisconnectWithoutContext (std::string path, const CallbackBase &cb)
Ptr< Object >	GetRootNamespaceObject (uint32_t i)
std::size_t	GetRootNamespaceObjectN (void)
MatchContainer	LookupMatches (std::string path)
void	RegisterRootNamespaceObject (Ptr< Object > obj)
void	Reset (void)
	Reset the initial value of every attribute as well as the value of every global to what they were before any call to SetDefault and SetGlobal. More...
void	Set (std::string path, const AttributeValue &value)
void	SetDefault (std::string name, const AttributeValue &value)
bool	SetDefaultFailSafe (std::string name, const AttributeValue &value)
bool	SetFailSafe (std::string path, const AttributeValue &value)
	This function will attempt to find attributes which match the input path and will then set their value to the input value, and will return true if at least one such attribute is found. More...
void	SetGlobal (std::string name, const AttributeValue &value)
bool	SetGlobalFailSafe (std::string name, const AttributeValue &value)
void	UnregisterRootNamespaceObject (Ptr< Object > obj)

Detailed Description

Namespace for the various functions implementing the Config system.

Function Documentation

ConnectFailSafe()

bool ns3::Config::ConnectFailSafe	(	std::string	path,
		const CallbackBase &	cb
	)

This function will attempt to find all trace sources which match the input path and will then connect the input callback to them in such a way that the callback will receive an extra context string upon trace event notification.

Returns

true if any trace sources could be connected.

Definition at line 929 of file config.cc.

References ns3::Config::ConfigImpl::ConnectFailSafe(), ns3::Singleton< ConfigImpl >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::PyViz::PyViz(), Connect(), ns3::AnimationInterface::ConnectCallbacks(), ns3::RadioBearerStatsConnector::ConnectTracesDrbEnb(), and ns3::RadioBearerStatsConnector::ConnectTracesDrbUe().

Here is the call graph for this function:

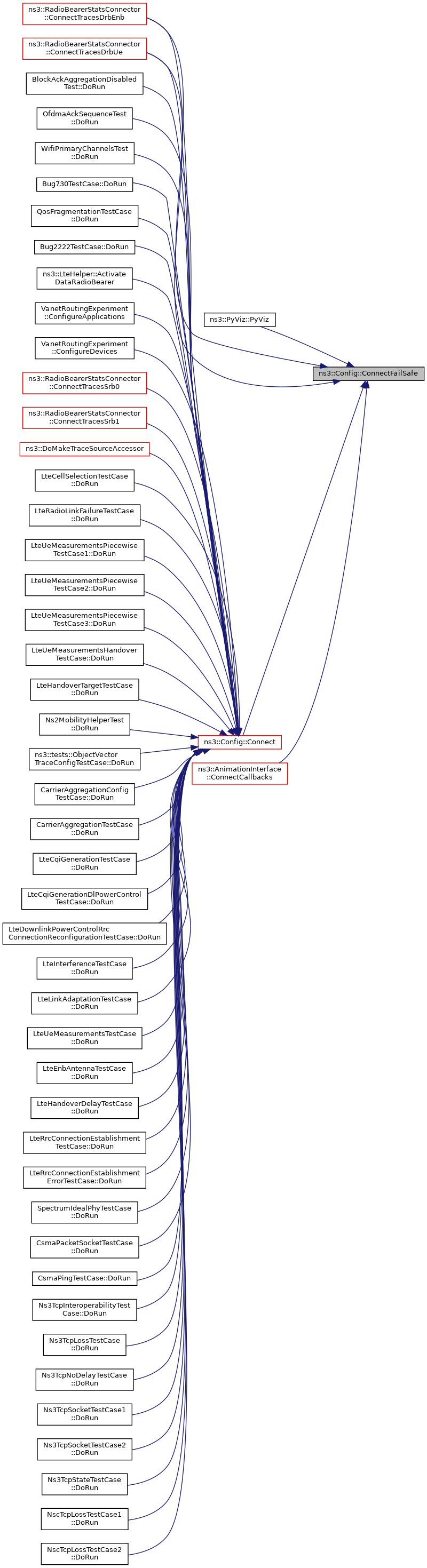

Here is the caller graph for this function:

ConnectWithoutContextFailSafe()

bool ns3::Config::ConnectWithoutContextFailSafe	(	std::string	path,
		const CallbackBase &	cb
	)

This function will attempt to find all trace sources which match the input path and will then connect the input callback to them.

If no matching trace sources are found, this method will return false; otherwise true.

Returns

true if any trace sources could be connected.

Definition at line 909 of file config.cc.

References ns3::Config::ConfigImpl::ConnectWithoutContextFailSafe(), ns3::Singleton< ConfigImpl >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4FlowProbe::Ipv4FlowProbe(), ns3::Ipv6FlowProbe::Ipv6FlowProbe(), ns3::AnimationInterface::ConnectCallbacks(), ConnectWithoutContext(), ns3::MobilityHelper::EnableAscii(), ScheduleFirstDctcpTraceConnection(), ScheduleFirstPacketSinkConnection(), ScheduleFirstTcpCwndTraceConnection(), ScheduleFirstTcpRttTraceConnection(), and ScheduleSecondDctcpTraceConnection().

Here is the call graph for this function:

Here is the caller graph for this function:

SetFailSafe()

bool ns3::Config::SetFailSafe	(	std::string	path,
		const AttributeValue &	value
	)

This function will attempt to find attributes which match the input path and will then set their value to the input value, and will return true if at least one such attribute is found.

Returns

true if any matching attributes could be set.

Definition at line 844 of file config.cc.

References ns3::Singleton< ConfigImpl >::Get(), NS_LOG_FUNCTION, and ns3::Config::ConfigImpl::SetFailSafe().

Here is the call graph for this function:
