CallbackImpl for functors with first two arguments bound at construction. More...

#include "callback.h"

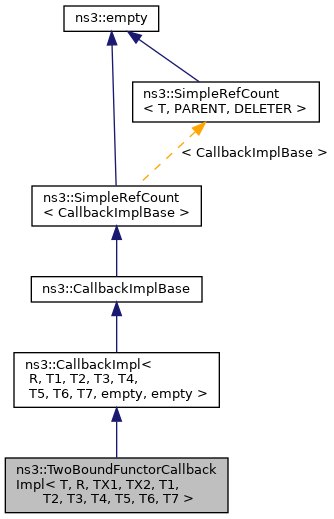

Inheritance diagram for ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >:

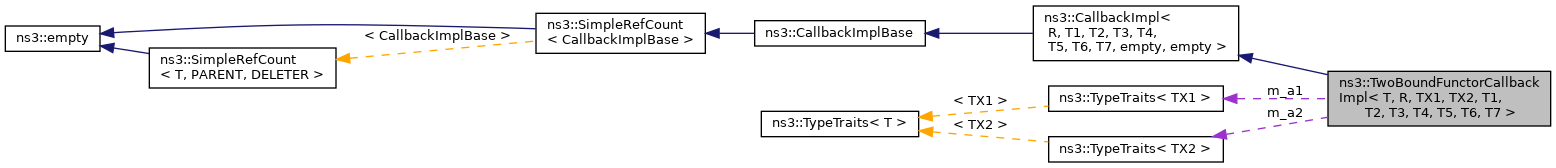

Collaboration diagram for ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >:

Public Member Functions
template<typename FUNCTOR , typename ARG1 , typename ARG2 >
	TwoBoundFunctorCallbackImpl (FUNCTOR functor, ARG1 arg1, ARG2 arg2)
	Construct from functor and two arguments. More...

virtual	~TwoBoundFunctorCallbackImpl ()

virtual bool	IsEqual (Ptr< const CallbackImplBase > other) const
	Equality test. More...


R	operator() (void)
	Functor with varying numbers of arguments. More...

R	operator() (T1 a1)

R	operator() (T1 a1, T2 a2)

R	operator() (T1 a1, T2 a2, T3 a3)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7)

Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, empty, empty >
virtual	~CallbackImpl ()

virtual std::string	GetTypeid (void) const
	Get the name of this object type. More...

Public Member Functions inherited from ns3::CallbackImplBase
virtual	~CallbackImplBase ()
	Virtual destructor. More...

Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
TypeTraits< TX1 >::ReferencedType	m_a1
	first bound argument More...

TypeTraits< TX2 >::ReferencedType	m_a2
	second bound argument More...

T	m_functor
	The functor. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, empty, empty >
static std::string	DoGetTypeid (void)
	Get the name of this object type. More...

Static Protected Member Functions inherited from ns3::CallbackImplBase
static std::string	Demangle (const std::string &mangled)

template<typename T >
static std::string	GetCppTypeid (void)
	Helper to get the C++ typeid as a string. More...

Detailed Description

template<typename T, typename R, typename TX1, typename TX2, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6, typename T7>
class ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >

CallbackImpl for functors with first two arguments bound at construction.

Template Parameters

T	[explicit] Type of the functor.
TX1	[explicit] Type of the first bound argument.
TX2	[explicit] Type of the second bound argument.

Definition at line 919 of file callback.h.

Constructor & Destructor Documentation

◆ TwoBoundFunctorCallbackImpl()

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

template<typename FUNCTOR , typename ARG1 , typename ARG2 >

ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::TwoBoundFunctorCallbackImpl	(	FUNCTOR	functor,
		ARG1	arg1,
		ARG2	arg2
	)

inline

Construct from functor and two arguments.

Template Parameters

FUNCTOR	[deduced] The actual type of the functor. This must be convertible to T.
ARG1	[deduced] The actual type of the first bound argument. This must be convertible to type TX1.
ARG2	[deduced] The actual type of the second bound argument. This must be convertible to type TX2.

Parameters

[in]	functor	The functor
[in]	arg1	The first argument to bind
[in]	arg2	The second argument to bind

Definition at line 935 of file callback.h.

◆ ~TwoBoundFunctorCallbackImpl()

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

virtual ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::~TwoBoundFunctorCallbackImpl ( )

inlinevirtual

Definition at line 938 of file callback.h.

Member Function Documentation

◆ IsEqual()

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

virtual bool ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::IsEqual ( Ptr< const CallbackImplBase > other ) const

inlinevirtual

Equality test.

Parameters

[in] other Callback Ptr

Returns: true if we have the same functor and bound arguments

Implements ns3::CallbackImplBase.

Definition at line 1033 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor, and ns3::PeekPointer().

Here is the call graph for this function:

◆ operator()() [1/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator() ( T1 a1 )

inline

Parameters

[in] a1 First argument

Returns: Callback value

Definition at line 953 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [2/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()	(	T1	a1,
		T2	a2
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument

Returns: Callback value

Definition at line 962 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [3/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument

Returns: Callback value

Definition at line 972 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [4/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument

Returns: Callback value

Definition at line 983 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [5/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument

Returns: Callback value

Definition at line 995 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [6/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

inline

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument

Returns: Callback value

Definition at line 1008 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [7/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7
	)

inlinevirtual

Parameters

[in]	a1	First argument
[in]	a2	Second argument
[in]	a3	Third argument
[in]	a4	Fourth argument
[in]	a5	Fifth argument
[in]	a6	Sixth argument
[in]	a7	Seventh argument

Returns: Callback value

Implements ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, empty, empty >.

Definition at line 1022 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

◆ operator()() [8/8]

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

R ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator() ( void )

inline

Functor with varying numbers of arguments.

Returns: Callback value

Definition at line 945 of file callback.h.

References ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1, ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2, and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor.

Member Data Documentation

◆ m_a1

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

TypeTraits<TX1>::ReferencedType ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a1

private

first bound argument

Definition at line 1051 of file callback.h.

Referenced by ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::IsEqual(), and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()().

◆ m_a2

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

TypeTraits<TX2>::ReferencedType ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_a2

private

second bound argument

Definition at line 1052 of file callback.h.

Referenced by ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::IsEqual(), and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()().

◆ m_functor

template<typename T , typename R , typename TX1 , typename TX2 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

T ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::m_functor

private

The functor.

Definition at line 1050 of file callback.h.

Referenced by ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::IsEqual(), and ns3::TwoBoundFunctorCallbackImpl< T, R, TX1, TX2, T1, T2, T3, T4, T5, T6, T7 >::operator()().

The documentation for this class was generated from the following file:

src/core/model/callback.h
