helps to create WifiNetDevice objects More...

#include "wifi-helper.h"

Inheritance diagram for ns3::WifiHelper:

Collaboration diagram for ns3::WifiHelper:

Public Types
typedef std::function< std::size_t(Ptr< QueueItem >)>	SelectQueueCallback
	Callback invoked to determine the MAC queue selected for a given packet. More...

Public Member Functions
	WifiHelper ()
	Create a Wifi helper in an empty state: all its parameters must be set before calling ns3::WifiHelper::Install. More...

virtual	~WifiHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the PHY and MAC aspects of the Wifi models. More...

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer c) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer::Iterator first, NodeContainer::Iterator last) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, Ptr< Node > node) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, std::string nodeName) const

void	SetObssPdAlgorithm (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetRemoteStationManager (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetSelectQueueCallback (SelectQueueCallback f)

virtual NS_DEPRECATED_3_32 void	SetStandard (WifiPhyStandard standard)

virtual void	SetStandard (WifiStandard standard)

Static Public Member Functions
static void	EnableLogComponents (void)
	Helper to enable all WifiNetDevice log components with one statement. More...

Protected Attributes
ObjectFactory	m_ackPolicySelector [4]
	ack policy selector for all ACs More...

ObjectFactory	m_obssPdAlgorithm
	OBSS_PD algorithm. More...

SelectQueueCallback	m_selectQueueCallback
	select queue callback More...

WifiStandard	m_standard
	wifi standard More...

ObjectFactory	m_stationManager
	station manager More...

Detailed Description

helps to create WifiNetDevice objects

This class can help to create a large set of similar WifiNetDevice objects and to configure a large set of their attributes during creation.

Definition at line 326 of file wifi-helper.h.

Member Typedef Documentation

◆ SelectQueueCallback

typedef std::function<std::size_t (Ptr<QueueItem>)> ns3::WifiHelper::SelectQueueCallback

Callback invoked to determine the MAC queue selected for a given packet.

Definition at line 406 of file wifi-helper.h.

Constructor & Destructor Documentation

◆ ~WifiHelper()

ns3::WifiHelper::~WifiHelper ( )

virtual

Definition at line 709 of file wifi-helper.cc.

◆ WifiHelper()

ns3::WifiHelper::WifiHelper ( )

Create a Wifi helper in an empty state: all its parameters must be set before calling ns3::WifiHelper::Install.

The default state is defined as being an Adhoc MAC layer with an ARF rate control algorithm and both objects using their default attribute values. By default, configure MAC and PHY for 802.11a.

Definition at line 713 of file wifi-helper.cc.

References SetRemoteStationManager().

Here is the call graph for this function:

Member Function Documentation

◆ AssignStreams()

int64_t ns3::WifiHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by the PHY and MAC aspects of the Wifi models.

Each device in container c has fixed stream numbers assigned to its random variables. The Wifi channel (e.g. propagation loss model) is excluded. Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the WifiNetDevice should be modified to use fixed streams
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 1012 of file wifi-helper.cc.

References ns3::Txop::AssignStreams(), ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), ns3::PointerValue::Get(), third::mac, and third::wifi.

Here is the call graph for this function:

◆ EnableLogComponents()

void ns3::WifiHelper::EnableLogComponents ( void )

static

Helper to enable all WifiNetDevice log components with one statement.

Definition at line 914 of file wifi-helper.cc.

References ns3::LOG_LEVEL_ALL, ns3::LOG_PREFIX_NODE, ns3::LOG_PREFIX_TIME, ns3::LogComponentEnable(), and ns3::LogComponentEnableAll().

Referenced by ns3::WaveHelper::EnableLogComponents(), and ns3::Wifi80211pHelper::EnableLogComponents().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [1/4]

NetDeviceContainer ns3::WifiHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		NodeContainer	c
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
c	the set of nodes on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Reimplemented in ns3::Wifi80211pHelper.

Definition at line 892 of file wifi-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and Install().

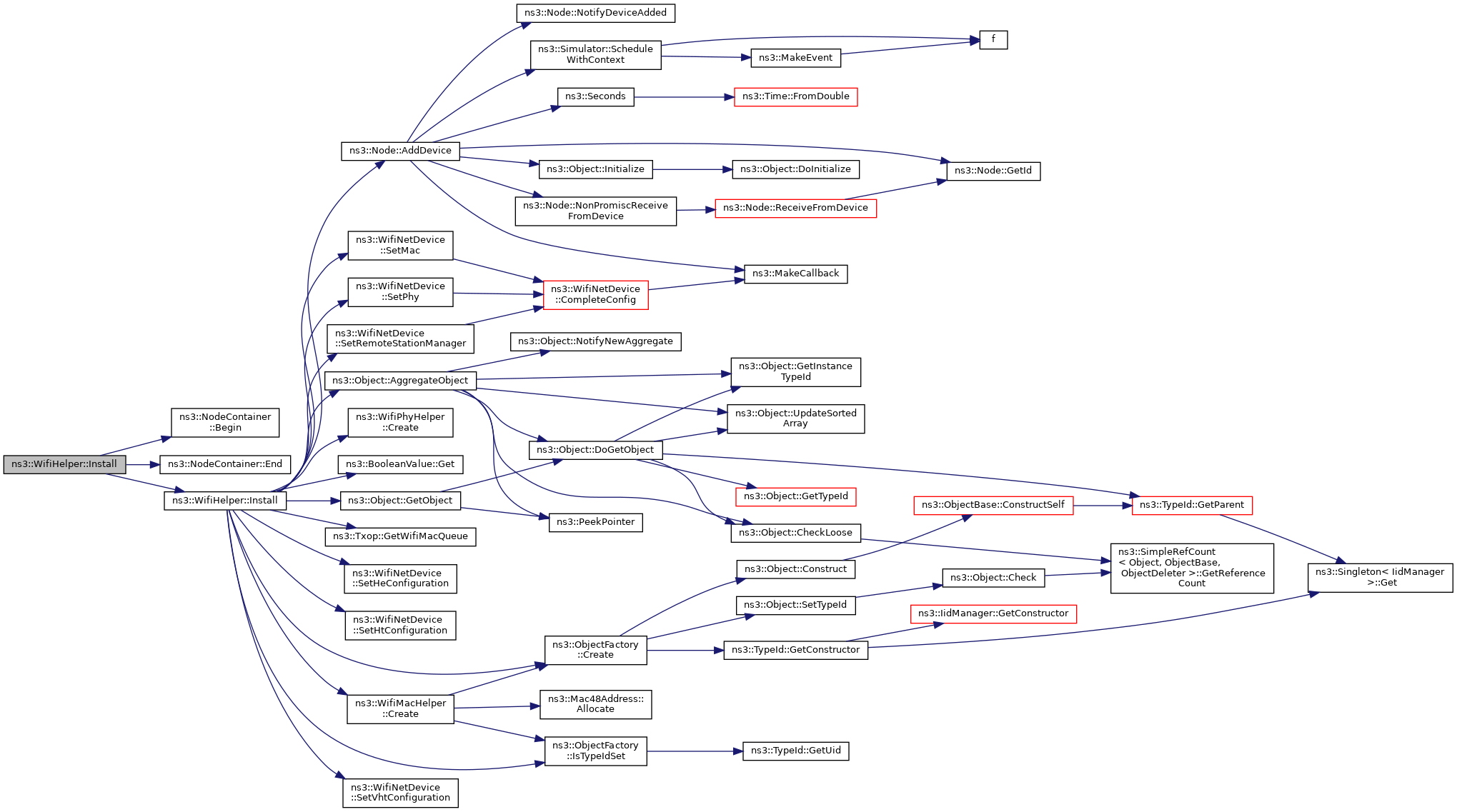

Here is the call graph for this function:

◆ Install() [2/4]

NetDeviceContainer ns3::WifiHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		NodeContainer::Iterator	first,
		NodeContainer::Iterator	last
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
first	lower bound on the set of nodes on which a wifi device must be created
last	upper bound on the set of nodes on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 810 of file wifi-helper.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::Node::AddDevice(), ns3::Object::AggregateObject(), ns3::WifiMacHelper::Create(), ns3::WifiPhyHelper::Create(), ns3::ObjectFactory::Create(), first::devices, ns3::BooleanValue::Get(), ns3::Object::GetObject(), ns3::Txop::GetWifiMacQueue(), ns3::ObjectFactory::IsTypeIdSet(), m_obssPdAlgorithm, m_selectQueueCallback, m_standard, m_stationManager, third::mac, NS_FATAL_ERROR, NS_LOG_DEBUG, third::phy, ns3::WifiNetDevice::SetHeConfiguration(), ns3::WifiNetDevice::SetHtConfiguration(), ns3::WifiNetDevice::SetMac(), ns3::WifiNetDevice::SetPhy(), ns3::WifiNetDevice::SetRemoteStationManager(), ns3::WifiNetDevice::SetVhtConfiguration(), ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211ax, ns3::WIFI_PHY_STANDARD_80211n, and ns3::wifiStandards.

Referenced by Install(), and ns3::Wifi80211pHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [3/4]

NetDeviceContainer ns3::WifiHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		Ptr< Node >	node
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
node	the node on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 899 of file wifi-helper.cc.

References Install(), third::mac, and third::phy.

Here is the call graph for this function:

◆ Install() [4/4]

NetDeviceContainer ns3::WifiHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		std::string	nodeName
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
nodeName	the name of node on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 906 of file wifi-helper.cc.

References Install(), third::mac, and third::phy.

Here is the call graph for this function:

◆ SetObssPdAlgorithm()

void ns3::WifiHelper::SetObssPdAlgorithm	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of ns3::ObssPdAlgorithm to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested algorithm.

Definition at line 744 of file wifi-helper.cc.

References m_obssPdAlgorithm, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

◆ SetRemoteStationManager()

void ns3::WifiHelper::SetRemoteStationManager	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of ns3::WifiRemoteStationManager to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested station manager.

Definition at line 721 of file wifi-helper.cc.

References m_stationManager, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by WifiHelper(), OcbWifiMacTestCase::ConfigureOcbMode(), ns3::Wifi80211pHelper::Default(), and VanetRoutingExperiment::SetupAdhocDevices().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSelectQueueCallback()

void ns3::WifiHelper::SetSelectQueueCallback ( SelectQueueCallback f )

Parameters

f	the select queue callback

Set the select queue callback to set on the NetDevice queue interface aggregated to the WifiNetDevice, in case RegularWifiMac with QoS enabled is used

Definition at line 804 of file wifi-helper.cc.

References f(), and m_selectQueueCallback.

Here is the call graph for this function:

◆ SetStandard() [1/2]

void ns3::WifiHelper::SetStandard ( WifiPhyStandard standard )

virtual

Parameters

standard the PHY standard to configure during installation

This method sets standards-compliant defaults for WifiMac parameters such as SIFS time, slot time, timeout values, etc., based on the standard selected. It results in WifiMac::ConfigureStandard(standard) being called on each installed MAC object.

The default standard of 802.11a will be applied if SetStandard() is not called.

Note that WifiMac::ConfigureStandard () will overwrite certain defaults in the attribute system, so if a user wants to manipulate any default values affected by ConfigureStandard() while using this helper, the user should use a post-install configuration such as Config::Set() on any objects that this helper creates, such as:

Config::Set ("/NodeList/0/DeviceList/0/$ns3::WifiNetDevice/Mac/Slot", TimeValue (MicroSeconds (slot)));

ns3::Config::Set

void Set(std::string path, const AttributeValue &value)

Definition: config.cc:839

ns3::MicroSeconds

Time MicroSeconds(uint64_t value)

Construct a Time in the indicated unit.

Definition: nstime.h:1305

Deprecated:: This method will go away in future release of ns-3.

See also: Config::Set

Reimplemented in ns3::Wifi80211pHelper.

Definition at line 774 of file wifi-helper.cc.

References m_standard, NS_FATAL_ERROR, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, ns3::WIFI_STANDARD_80211a, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211n_2_4GHZ, and ns3::WIFI_STANDARD_80211n_5GHZ.

◆ SetStandard() [2/2]

void ns3::WifiHelper::SetStandard ( WifiStandard standard )

virtual

Parameters

standard the standard to configure during installation

This method sets standards-compliant defaults for WifiMac parameters such as SIFS time, slot time, timeout values, etc., based on the standard selected. It results in WifiMac::ConfigureStandard(standard) being called on each installed MAC object.

The default standard of 802.11a will be applied if SetStandard() is not called.

Note that WifiMac::ConfigureStandard () will overwrite certain defaults in the attribute system, so if a user wants to manipulate any default values affected by ConfigureStandard() while using this helper, the user should use a post-install configuration such as Config::Set() on any objects that this helper creates, such as:

Config::Set ("/NodeList/0/DeviceList/0/$ns3::WifiNetDevice/Mac/Slot", TimeValue (MicroSeconds (slot)));

See also: WifiMac::ConfigureStandard; Config::Set

Reimplemented in ns3::Wifi80211pHelper.

Definition at line 767 of file wifi-helper.cc.

References m_standard.

Referenced by ns3::Wifi80211pHelper::SetStandard().

Here is the caller graph for this function:

Member Data Documentation

◆ m_ackPolicySelector

ObjectFactory ns3::WifiHelper::m_ackPolicySelector[4]

protected

ack policy selector for all ACs

Definition at line 528 of file wifi-helper.h.

◆ m_obssPdAlgorithm

ObjectFactory ns3::WifiHelper::m_obssPdAlgorithm

protected

OBSS_PD algorithm.

Definition at line 531 of file wifi-helper.h.

Referenced by Install(), and SetObssPdAlgorithm().

◆ m_selectQueueCallback

SelectQueueCallback ns3::WifiHelper::m_selectQueueCallback

protected

select queue callback

Definition at line 530 of file wifi-helper.h.

Referenced by Install(), and SetSelectQueueCallback().

◆ m_standard

WifiStandard ns3::WifiHelper::m_standard

protected

wifi standard

Definition at line 529 of file wifi-helper.h.

Referenced by Install(), and SetStandard().

◆ m_stationManager

ObjectFactory ns3::WifiHelper::m_stationManager

protected

station manager

Definition at line 527 of file wifi-helper.h.

Referenced by Install(), and SetRemoteStationManager().

The documentation for this class was generated from the following files:

src/wifi/helper/wifi-helper.h
src/wifi/helper/wifi-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ SelectQueueCallback

Constructor & Destructor Documentation

◆ ~WifiHelper()

◆ WifiHelper()

Member Function Documentation

◆ AssignStreams()

◆ EnableLogComponents()

◆ Install() [1/4]

◆ Install() [2/4]

◆ Install() [3/4]

◆ Install() [4/4]

◆ SetObssPdAlgorithm()

◆ SetRemoteStationManager()

◆ SetSelectQueueCallback()

◆ SetStandard() [1/2]

◆ SetStandard() [2/2]

Member Data Documentation

◆ m_ackPolicySelector

◆ m_obssPdAlgorithm

◆ m_selectQueueCallback

◆ m_standard

◆ m_stationManager
