UL-OFDMA PHY test. More...

Inheritance diagram for TestUlOfdmaPhyTransmission:

Collaboration diagram for TestUlOfdmaPhyTransmission:

Public Member Functions
	TestUlOfdmaPhyTransmission ()

virtual	~TestUlOfdmaPhyTransmission ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	CheckNonOfdmaRxPower (Ptr< OfdmaSpectrumWifiPhy > phy, WifiSpectrumBand band, double expectedRxPower)
	Check the received power for the non-OFDMA of the HE TB PPDUs over the given band. More...

void	CheckOfdmaRxPower (Ptr< OfdmaSpectrumWifiPhy > phy, WifiSpectrumBand band, double expectedRxPower)
	Check the received power for the OFDMA part of the HE TB PPDUs over the given band. More...

void	CheckPhyState (Ptr< OfdmaSpectrumWifiPhy > phy, WifiPhyState expectedState)
	Check the PHY state. More...

void	CheckRxFromSta1 (uint32_t expectedSuccess, uint32_t expectedFailures, uint32_t expectedBytes)
	Check the received PSDUs from STA1. More...

void	CheckRxFromSta2 (uint32_t expectedSuccess, uint32_t expectedFailures, uint32_t expectedBytes)
	Check the received PSDUs from STA2. More...

void	DoCheckPhyState (Ptr< OfdmaSpectrumWifiPhy > phy, WifiPhyState expectedState)
	Check the PHY state. More...

void	DoRun (void) override
	Implementation to actually run this TestCase. More...

void	DoSetup (void) override
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown (void) override
	Implementation to do any local setup required for this TestCase. More...

void	GenerateInterference (Ptr< SpectrumValue > interferencePsd, Time duration)
	Generate interference function. More...

WifiTxVector	GetTxVectorForHeTbPpdu (uint16_t txStaId, std::size_t index, uint8_t bssColor) const
	Get TXVECTOR for HE TB PPDU. More...

void	LogScenario (std::string log) const
	Log scenario description. More...

void	Reset ()
	Reset function. More...

void	RunOne ()
	Run one function. More...

void	RxFailure (Ptr< WifiPsdu > psdu)
	Receive failure function. More...

void	RxSuccess (Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
	Receive success function. More...

void	SchedulePowerMeasurementChecks (Time delay, double rxPowerNonOfdmaRu1, double rxPowerNonOfdmaRu2, double rxPowerOfdmaRu1, double rxPowerOfdmaRu2)
	Schedule power measurement related checks. More...

void	ScheduleTest (Time delay, bool solicited, WifiPhyState expectedStateAtEnd, uint32_t expectedSuccessFromSta1, uint32_t expectedFailuresFromSta1, uint32_t expectedBytesFromSta1, uint32_t expectedSuccessFromSta2, uint32_t expectedFailuresFromSta2, uint32_t expectedBytesFromSta2, bool scheduleTxSta1=true, WifiPhyState expectedStateBeforeEnd=WifiPhyState::RX)
	Schedule test to perform. More...

void	SendHeSuPpdu (uint16_t txStaId, std::size_t payloadSize, uint64_t uid, uint8_t bssColor)
	Send HE SU PPDU function. More...

void	SendHeTbPpdu (uint16_t txStaId, std::size_t index, std::size_t payloadSize, uint64_t uid, uint8_t bssColor)
	Send HE TB PPDU function. More...

void	SetBssColor (Ptr< WifiPhy > phy, uint8_t bssColor)
	Set the BSS color. More...

void	SetPsdLimit (Ptr< WifiPhy > phy, double psdLimit)
	Set the PSD limit. More...

void	StopInterference (void)
	Stop interference function. More...

void	VerifyEventsCleared (void)
	Verify all events are cleared at end of TX or RX. More...

Private Attributes
uint16_t	m_channelWidth
	channel width in MHz More...

uint32_t	m_countRxBytesFromSta1
	count RX bytes from STA 1 More...

uint32_t	m_countRxBytesFromSta2
	count RX bytes from STA 2 More...

uint32_t	m_countRxFailureFromSta1
	count RX failure from STA 1 More...

uint32_t	m_countRxFailureFromSta2
	count RX failure from STA 2 More...

uint32_t	m_countRxSuccessFromSta1
	count RX success from STA 1 More...

uint32_t	m_countRxSuccessFromSta2
	count RX success from STA 2 More...

Time	m_expectedPpduDuration
	expected duration to send MU PPDU More...

uint16_t	m_frequency
	frequency in MHz More...

Ptr< OfdmaSpectrumWifiPhy >	m_phyAp
	PHY of AP. More...

Ptr< WaveformGenerator >	m_phyInterferer
	PHY of interferer. More...

Ptr< OfdmaSpectrumWifiPhy >	m_phySta1
	PHY of STA 1. More...

Ptr< OfdmaSpectrumWifiPhy >	m_phySta2
	PHY of STA 2. More...

Ptr< OfdmaSpectrumWifiPhy >	m_phySta3
	PHY of STA 3. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

UL-OFDMA PHY test.

Definition at line 1634 of file wifi-phy-ofdma-test.cc.

Constructor & Destructor Documentation

◆ TestUlOfdmaPhyTransmission()

TestUlOfdmaPhyTransmission::TestUlOfdmaPhyTransmission ( )

Definition at line 1825 of file wifi-phy-ofdma-test.cc.

◆ ~TestUlOfdmaPhyTransmission()

TestUlOfdmaPhyTransmission::~TestUlOfdmaPhyTransmission ( )

virtual

Definition at line 1977 of file wifi-phy-ofdma-test.cc.

Member Function Documentation

◆ CheckNonOfdmaRxPower()

void TestUlOfdmaPhyTransmission::CheckNonOfdmaRxPower	(	Ptr< OfdmaSpectrumWifiPhy >	phy,
		WifiSpectrumBand	band,
		double	expectedRxPower
	)

private

Check the received power for the non-OFDMA of the HE TB PPDUs over the given band.

Parameters

phy	the PHY
band	the WifiSpectrumBand over which the power is measured
expectedRxPower	the expected received power in W

Definition at line 2028 of file wifi-phy-ofdma-test.cc.

References ns3::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_EQ_TOL, and third::phy.

Referenced by SchedulePowerMeasurementChecks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckOfdmaRxPower()

void TestUlOfdmaPhyTransmission::CheckOfdmaRxPower	(	Ptr< OfdmaSpectrumWifiPhy >	phy,
		WifiSpectrumBand	band,
		double	expectedRxPower
	)

private

Check the received power for the OFDMA part of the HE TB PPDUs over the given band.

Parameters

phy	the PHY
band	the WifiSpectrumBand over which the power is measured
expectedRxPower	the expected received power in W

The current event cannot be used since it points to the preamble part of the HE TB PPDU. We will have to check if the expected power is indeed the max power returning a positive duration when calling GetEnergyDuration.

Definition at line 2039 of file wifi-phy-ofdma-test.cc.

References ns3::Now(), NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_EQ, and third::phy.

Referenced by SchedulePowerMeasurementChecks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckPhyState()

void TestUlOfdmaPhyTransmission::CheckPhyState	(	Ptr< OfdmaSpectrumWifiPhy >	phy,
		WifiPhyState	expectedState
	)

private

Check the PHY state.

Parameters

phy	the PHY
expectedState	the expected state of the PHY

Definition at line 2071 of file wifi-phy-ofdma-test.cc.

References DoCheckPhyState(), and third::phy.

Referenced by RunOne(), and ScheduleTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckRxFromSta1()

void TestUlOfdmaPhyTransmission::CheckRxFromSta1	(	uint32_t	expectedSuccess,
		uint32_t	expectedFailures,
		uint32_t	expectedBytes
	)

private

Check the received PSDUs from STA1.

Parameters

expectedSuccess	the expected number of success
expectedFailures	the expected number of failures
expectedBytes	the expected number of bytes

Definition at line 2012 of file wifi-phy-ofdma-test.cc.

References m_countRxBytesFromSta1, m_countRxFailureFromSta1, m_countRxSuccessFromSta1, and NS_TEST_ASSERT_MSG_EQ.

Referenced by ScheduleTest().

Here is the caller graph for this function:

◆ CheckRxFromSta2()

void TestUlOfdmaPhyTransmission::CheckRxFromSta2	(	uint32_t	expectedSuccess,
		uint32_t	expectedFailures,
		uint32_t	expectedBytes
	)

private

Check the received PSDUs from STA2.

Parameters

expectedSuccess	the expected number of success
expectedFailures	the expected number of failures
expectedBytes	the expected number of bytes

Definition at line 2020 of file wifi-phy-ofdma-test.cc.

References m_countRxBytesFromSta2, m_countRxFailureFromSta2, m_countRxSuccessFromSta2, and NS_TEST_ASSERT_MSG_EQ.

Referenced by ScheduleTest().

Here is the caller graph for this function:

◆ DoCheckPhyState()

void TestUlOfdmaPhyTransmission::DoCheckPhyState	(	Ptr< OfdmaSpectrumWifiPhy >	phy,
		WifiPhyState	expectedState
	)

private

Check the PHY state.

Parameters

phy	the PHY
expectedState	the expected state of the PHY

Definition at line 2078 of file wifi-phy-ofdma-test.cc.

References ns3::PointerValue::Get(), ns3::Now(), NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_EQ, and third::phy.

Referenced by CheckPhyState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void TestUlOfdmaPhyTransmission::DoRun ( void )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 2748 of file wifi-phy-ofdma-test.cc.

References m_channelWidth, m_expectedPpduDuration, m_frequency, ns3::NanoSeconds(), NS_LOG_DEBUG, and RunOne().

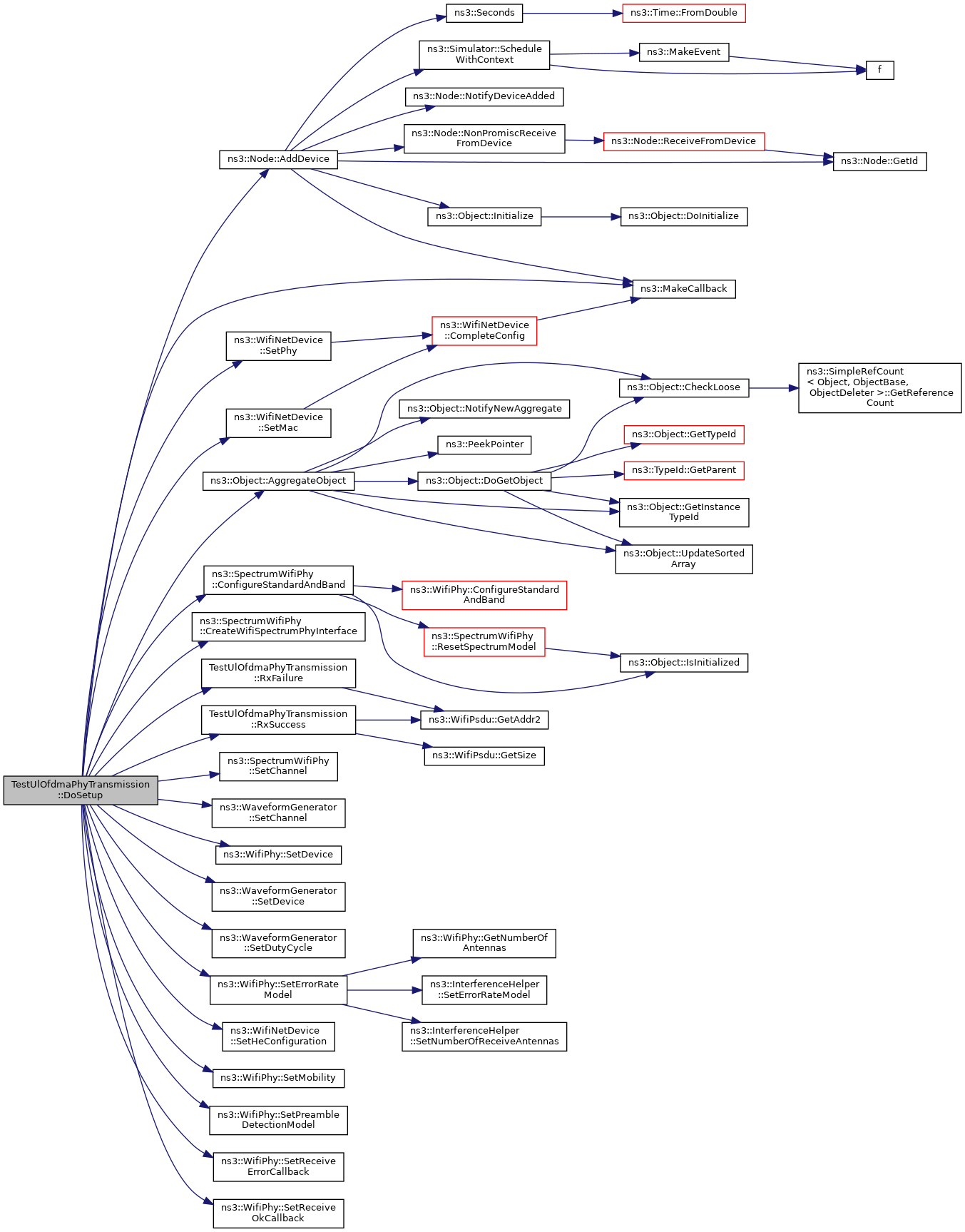

Here is the call graph for this function:

◆ DoSetup()

void TestUlOfdmaPhyTransmission::DoSetup ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 2120 of file wifi-phy-ofdma-test.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), ns3::SpectrumWifiPhy::ConfigureStandardAndBand(), ns3::SpectrumWifiPhy::CreateWifiSpectrumPhyInterface(), m_frequency, m_phyAp, m_phyInterferer, m_phySta1, m_phySta2, m_phySta3, ns3::MakeCallback(), third::phy, RxFailure(), RxSuccess(), ns3::SpectrumWifiPhy::SetChannel(), ns3::WaveformGenerator::SetChannel(), ns3::WifiPhy::SetDevice(), ns3::WaveformGenerator::SetDevice(), ns3::WaveformGenerator::SetDutyCycle(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiNetDevice::SetHeConfiguration(), ns3::WifiNetDevice::SetMac(), ns3::WifiPhy::SetMobility(), ns3::WifiNetDevice::SetPhy(), ns3::WifiPhy::SetPreambleDetectionModel(), ns3::WifiPhy::SetReceiveErrorCallback(), ns3::WifiPhy::SetReceiveOkCallback(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PHY_STANDARD_80211ax.

Here is the call graph for this function:

◆ DoTeardown()

void TestUlOfdmaPhyTransmission::DoTeardown ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 2222 of file wifi-phy-ofdma-test.cc.

References ns3::Object::Dispose(), m_phyAp, m_phyInterferer, m_phySta1, m_phySta2, and m_phySta3.

Here is the call graph for this function:

◆ GenerateInterference()

void TestUlOfdmaPhyTransmission::GenerateInterference	(	Ptr< SpectrumValue >	interferencePsd,
		Time	duration
	)

private

Generate interference function.

Parameters

interferencePsd	the PSD of the interference to be generated
duration	the duration of the interference

Definition at line 1962 of file wifi-phy-ofdma-test.cc.

References m_phyInterferer, NS_LOG_FUNCTION, ns3::WaveformGenerator::SetPeriod(), ns3::WaveformGenerator::SetTxPowerSpectralDensity(), ns3::WaveformGenerator::Start(), and StopInterference().

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTxVectorForHeTbPpdu()

WifiTxVector TestUlOfdmaPhyTransmission::GetTxVectorForHeTbPpdu	(	uint16_t	txStaId,
		std::size_t	index,
		uint8_t	bssColor
	)		const

private

Get TXVECTOR for HE TB PPDU.

Parameters

txStaId	the ID of the TX STA
index	the RU index used for the transmission
bssColor	the BSS color of the TX STA

Returns: the TXVECTOR for HE TB PPDU

Definition at line 1881 of file wifi-phy-ofdma-test.cc.

References m_channelWidth, NS_ASSERT_MSG, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::HeRu::RuSpec::SetPhyIndex(), ns3::WifiTxVector::SetRu(), and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by SchedulePowerMeasurementChecks(), and SendHeTbPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LogScenario()

void TestUlOfdmaPhyTransmission::LogScenario ( std::string log ) const

private

Log scenario description.

Parameters

log	the scenario description to add to log

Definition at line 2237 of file wifi-phy-ofdma-test.cc.

References NS_LOG_INFO.

Referenced by RunOne().

Here is the caller graph for this function:

◆ Reset()

void TestUlOfdmaPhyTransmission::Reset ( void )

private

Reset function.

Definition at line 2090 of file wifi-phy-ofdma-test.cc.

References m_countRxBytesFromSta1, m_countRxBytesFromSta2, m_countRxFailureFromSta1, m_countRxFailureFromSta2, m_countRxSuccessFromSta1, m_countRxSuccessFromSta2, m_phyAp, m_phySta1, m_phySta2, SetBssColor(), OfdmaSpectrumWifiPhy::SetPpduUid(), and OfdmaSpectrumWifiPhy::SetTriggerFrameUid().

Referenced by RunOne(), and ScheduleTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunOne()

void TestUlOfdmaPhyTransmission::RunOne ( void )

private

Run one function.

In all the following tests, 2 HE TB PPDUs of the same UL MU transmission are sent on RU 1 for STA 1 and RU 2 for STA 2. The difference between solicited and unsolicited lies in that their PPDU ID correspond to the one of the immediately preceding HE SU PPDU (thus mimicing trigger frame reception).

Definition at line 2359 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPhy::AssignStreams(), CCA_BUSY, CheckPhyState(), ns3::DbmToW(), ns3::BandInfo::fc, ns3::BandInfo::fh, ns3::BandInfo::fl, GenerateInterference(), IDLE, LogScenario(), m_channelWidth, m_expectedPpduDuration, m_frequency, m_phyAp, m_phySta1, m_phySta2, m_phySta3, ns3::MicroSeconds(), ns3::MilliSeconds(), ns3::NanoSeconds(), Reset(), RX, SchedulePowerMeasurementChecks(), ScheduleTest(), ns3::Seconds(), SendHeSuPpdu(), SendHeTbPpdu(), SetBssColor(), ns3::SpectrumWifiPhy::SetChannelWidth(), ns3::SpectrumWifiPhy::SetFrequency(), SetPsdLimit(), and VerifyEventsCleared().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxFailure()

void TestUlOfdmaPhyTransmission::RxFailure ( Ptr< WifiPsdu > psdu )

private

Receive failure function.

Parameters

psdu the PSDU

Definition at line 1998 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPsdu::GetAddr2(), m_countRxFailureFromSta1, m_countRxFailureFromSta2, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxSuccess()

void TestUlOfdmaPhyTransmission::RxSuccess	(	Ptr< WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)

private

Receive success function.

Parameters

psdu	the PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	the transmit vector
statusPerMpdu	reception status per MPDU

Definition at line 1982 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPsdu::GetAddr2(), ns3::WifiPsdu::GetSize(), m_countRxBytesFromSta1, m_countRxBytesFromSta2, m_countRxSuccessFromSta1, m_countRxSuccessFromSta2, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SchedulePowerMeasurementChecks()

void TestUlOfdmaPhyTransmission::SchedulePowerMeasurementChecks	(	Time	delay,
		double	rxPowerNonOfdmaRu1,
		double	rxPowerNonOfdmaRu2,
		double	rxPowerOfdmaRu1,
		double	rxPowerOfdmaRu2
	)

private

Schedule power measurement related checks.

Parameters

delay	the reference delay used to schedule the events
rxPowerNonOfdmaRu1	the received power (in watts) on the non-OFDMA part of RU1
rxPowerNonOfdmaRu2	the received power (in watts) on the non-OFDMA part of RU2
rxPowerOfdmaRu1	the received power (in watts) on RU1
rxPowerOfdmaRu2	the received power (in watts) on RU2

Perform checks at AP

Perform checks for non-transmitting STA (STA 3). Cannot use CheckNonOfdmaRxPower method since current event may be reset if preamble not detected (e.g. not on primary).

Perform checks for transmitting STA (STA 2) to ensure it has correctly logged power received from other transmitting STA (STA 1). Cannot use CheckNonOfdmaRxPower method since current event not set.

Definition at line 2277 of file wifi-phy-ofdma-test.cc.

References CheckNonOfdmaRxPower(), CheckOfdmaRxPower(), OfdmaSpectrumWifiPhy::GetHePhy(), GetTxVectorForHeTbPpdu(), m_channelWidth, m_expectedPpduDuration, m_phyAp, m_phySta2, m_phySta3, ns3::NanoSeconds(), and NS_ASSERT.

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleTest()

void TestUlOfdmaPhyTransmission::ScheduleTest	(	Time	delay,
		bool	solicited,
		WifiPhyState	expectedStateAtEnd,
		uint32_t	expectedSuccessFromSta1,
		uint32_t	expectedFailuresFromSta1,
		uint32_t	expectedBytesFromSta1,
		uint32_t	expectedSuccessFromSta2,
		uint32_t	expectedFailuresFromSta2,
		uint32_t	expectedBytesFromSta2,
		bool	scheduleTxSta1 = `true`,
		WifiPhyState	expectedStateBeforeEnd = `WifiPhyState::RX`
	)

private

Schedule test to perform.

The interference generation should be scheduled apart.

Parameters

delay	the reference delay to schedule the events
solicited	flag indicating if HE TB PPDUs were solicited by the AP
expectedStateAtEnd	the expected state of the PHY at the end of the reception
expectedSuccessFromSta1	the expected number of success from STA 1
expectedFailuresFromSta1	the expected number of failures from STA 1
expectedBytesFromSta1	the expected number of bytes from STA 1
expectedSuccessFromSta2	the expected number of success from STA 2
expectedFailuresFromSta2	the expected number of failures from STA 2
expectedBytesFromSta2	the expected number of bytes from STA 2
scheduleTxSta1	flag indicating to schedule a HE TB PPDU from STA 1
expectedStateBeforeEnd	the expected state of the PHY before the end of the transmission

Definition at line 2243 of file wifi-phy-ofdma-test.cc.

References CheckPhyState(), CheckRxFromSta1(), CheckRxFromSta2(), m_expectedPpduDuration, m_phyAp, ns3::MilliSeconds(), ns3::NanoSeconds(), Reset(), SendHeSuPpdu(), SendHeTbPpdu(), and VerifyEventsCleared().

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendHeSuPpdu()

void TestUlOfdmaPhyTransmission::SendHeSuPpdu	(	uint16_t	txStaId,
		std::size_t	payloadSize,
		uint64_t	uid,
		uint8_t	bssColor
	)

private

Send HE SU PPDU function.

Parameters

txStaId	the ID of the TX STA
payloadSize	the size of the payload in bytes
uid	the UID of the trigger frame that is initiating this transmission
bssColor	the BSS color of the TX STA

Definition at line 1840 of file wifi-phy-ofdma-test.cc.

References m_channelWidth, m_phyAp, m_phySta1, m_phySta2, m_phySta3, NS_LOG_FUNCTION, third::phy, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetSequenceNumber(), ns3::WifiMacHeader::SetType(), SU_STA_ID, ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_SU.

Referenced by RunOne(), and ScheduleTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendHeTbPpdu()

void TestUlOfdmaPhyTransmission::SendHeTbPpdu	(	uint16_t	txStaId,
		std::size_t	index,
		std::size_t	payloadSize,
		uint64_t	uid,
		uint8_t	bssColor
	)

private

Send HE TB PPDU function.

Parameters

txStaId	the ID of the TX STA
index	the RU index used for the transmission
payloadSize	the size of the payload in bytes
uid	the UID of the trigger frame that is initiating this transmission
bssColor	the BSS color of the TX STA
